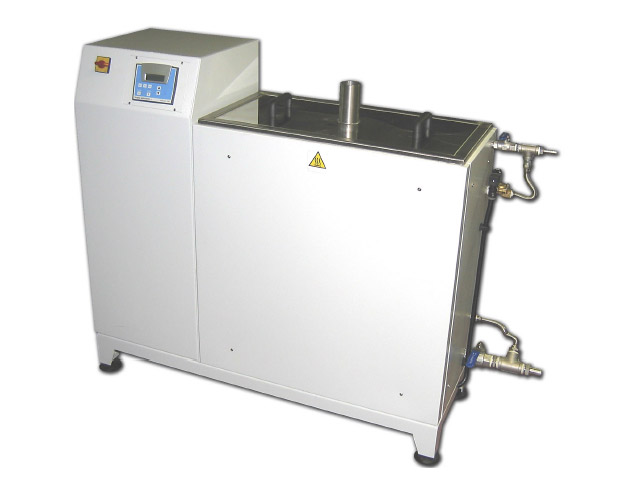

VSVD DEPRIMOMETER TANK FOR LIQUID ABSORPTION CHECK

General features: – Stainless steel tank and sample holder. – Base and container for electrical equipment in powder-coated steel. – Insulation cover panels in powder-coated stainless steel – Insulation: halogen-free elastometric insulating material – Lid with handles and vent tube. – Basket suitable for n. 12 tiles of cm. 25 × 25, or n. 6 tiles of cm. 60 x 60. – Electric heating by armored resistance of Kw 4,5 – Cooling by means of a water coil, controlled by a solenoid valve. – Automatic test cycle, with end of test acoustic signal. – Control panel with keyboard and LCD display User programmable parameters:

  • Boiling temperature
  • Residence time in the boil
  • Cooling time
  • Cooling gradient
5 selectable languages ​​(- I – GB – F – E – D). Power supply V. 400 three-phase 50/60 Hz, Kw. 4.8. Model 60: – Tests up to 60×60 cm format – Overall dimensions cm. 144 x 43 x 114 – Net weight Kg. 157 Model 120: – Trials up to 60×120 cm format – Overall dimensions: 204 x 43 x 114 cm – Total net weight: 220 kg

Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.

The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.

Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.

Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.

LKN77 and LKN87 models equipped with “silicon carbide” elements.

Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”

Various models available (firing area dimensions and maximum temperature).



Sorry, but this item is only available in English.

Sorry, but this article is only available in English.

Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

KILN DRYER FOR

CERAMIC LABORATORY

Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)
