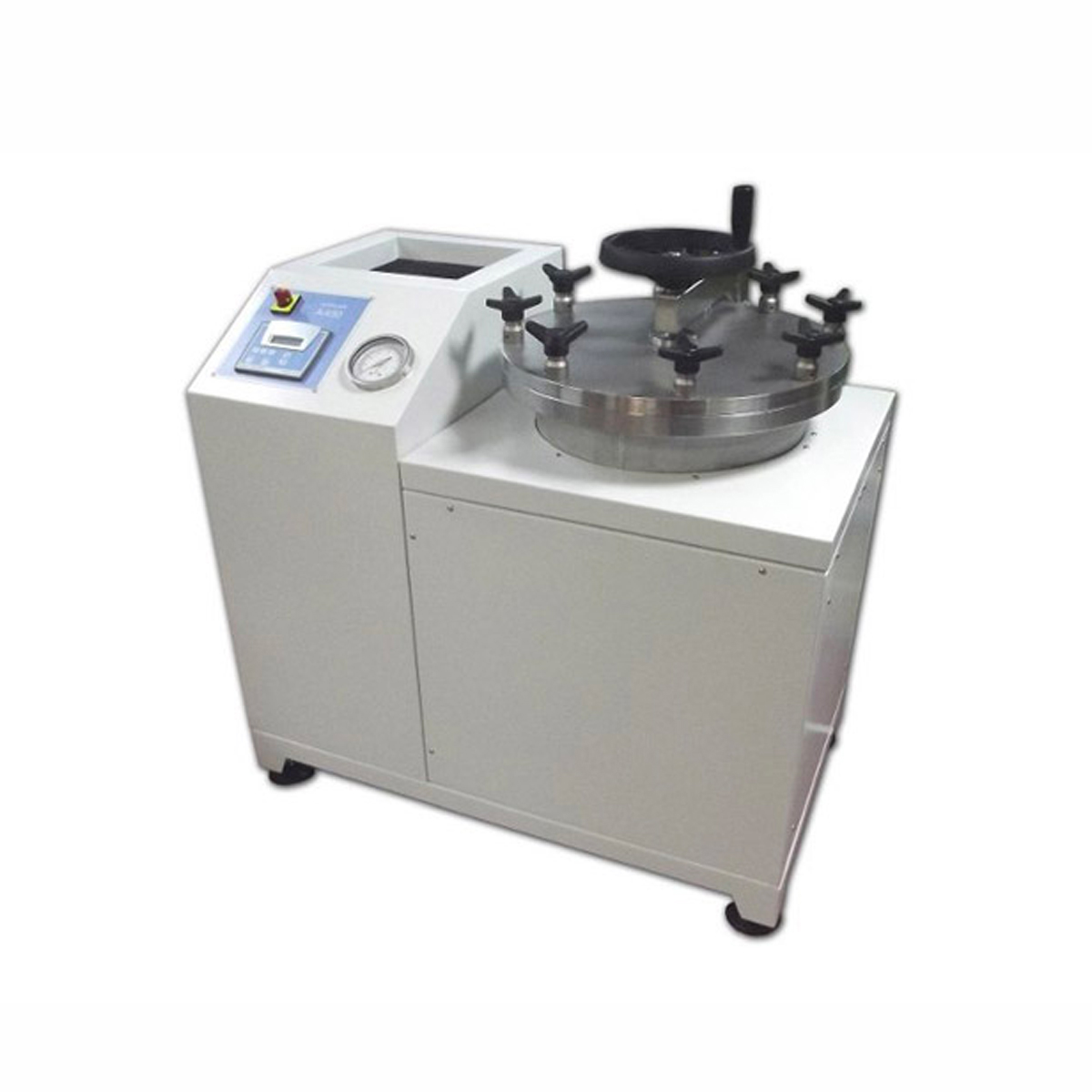

LABORATORY AUTOCLAVES

Standardized systems for crazing resistance tests on ceramic glazed tiles. UNI EN ISO 10545-11 standard System designed to subject whole tiles to high pressure water vapor in an autoclave. Tiles on which the presence of crazing will be verified by laboratory tests. In stainless steel. Power supply 400 V, 50 Hz. Automatic test cycle. Available autoclaves of different sizes and applied pressure.

Sorry, but this item is only available in English.

Laboratory ovens suitable for cooking with rapid cycles.

The temperature and cooking cycle are controlled by a microprocessor programmer mod. K1PX with which it is possible to set 4 cooking cycles composed, each, of 8 STEPS.

Optional: Indirect forced cooling with automatic chimney control included

Optional: Direct forced cooling with automatic chimney control included

Optional: Automatic chimney management

Optional: Automatic management of the controlled atmosphere

Optional: Automatic vacuum management (Vacuum pump included)

Optional: PC management software (PC excluded)

Various models available (firing zone size and maximum temperature).

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Equipped with 6 independent heating cells;
  • Possibility of setting and managing gradients of up to 15 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
  • Possibility to manage the oven even from a distance.
  • Firing area size 150x600x110 mm



Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

KILN DRYER FOR

CERAMIC LABORATORY

Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)
