TABLE WITH LIGHT VIEWER TL

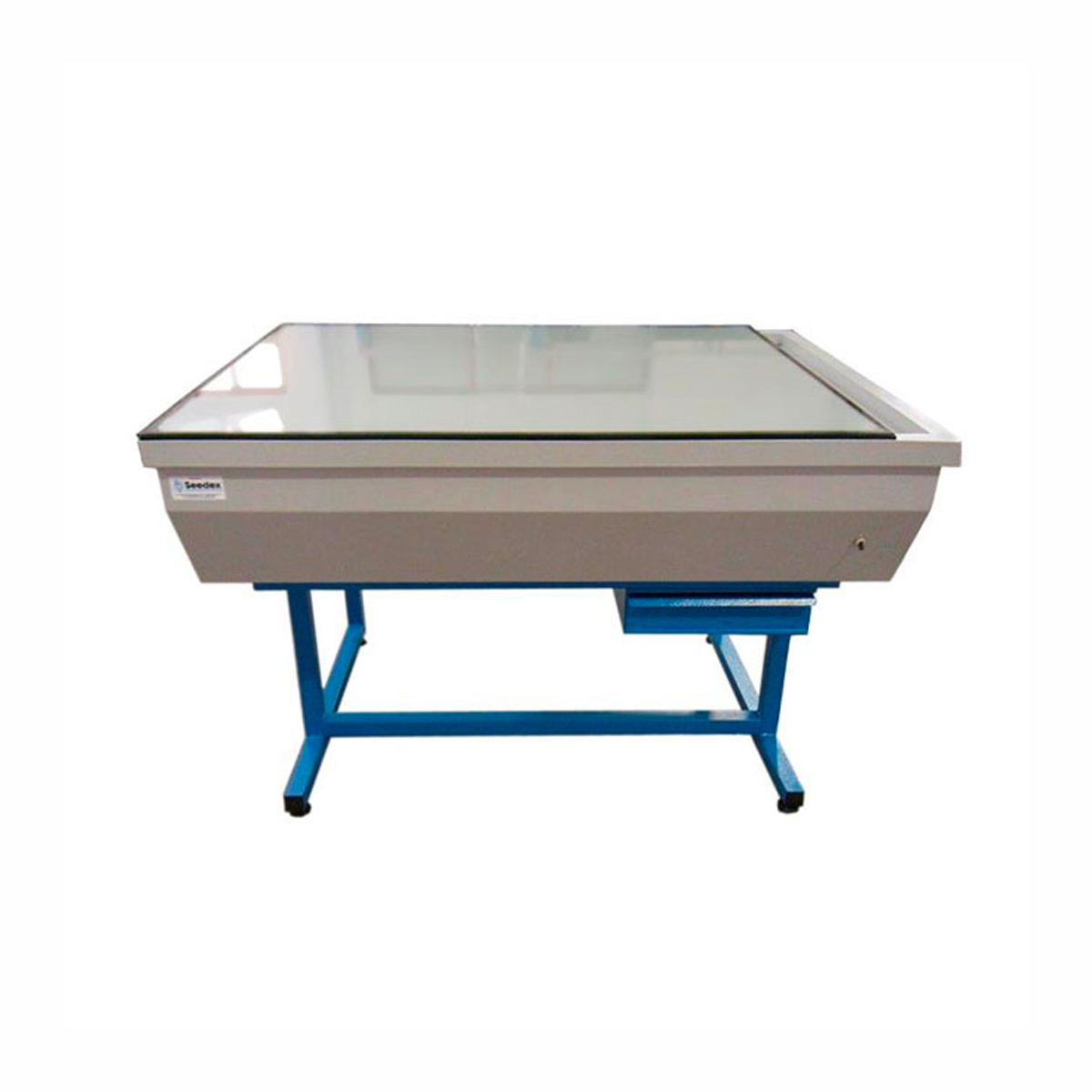

Table with light viewer for graphics control of the films , designs or various corrections. TECHNICAL FEATURES Frame and structure made by painted steel; Satin finished upper tabl ; working table in crystal glass; light diffusion by neon lamps; Side space for object’s holding; Without drawers, to work seated in case of drawing or correcting execution. Power supply: 220 volts – 50 Hertz
CODE |
LIGHT TABLE |
USEFUL SIZE OF WORK PLANE AND DRAWERS (CM) |
AQSTLS055074 |
TL - 55 |
55X74 |
AQSTLS085109 |
TL - 85 |
85X109 |
AQSTLS100116 |
TL - 100 |
100X116 |
AQSTLS123153 |
TL - 123 |
123X153 |
AQSTLS138169 |
TL - 138 |
138X169 |
Table with light viewer for graphics control of the films, designs or various corrections.
TECHNICAL FEATURES
Frame and structure made by painted steel;
Satin-finished upper table; working table in crystal glass; light diffusion by neon lamps;
Side space for object’s holding;
With drawers to store drafts, drawings or films;
Power supply: 220 volts – 50 Hertz
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Made by painted stainless steel, is a motorized version model with manual closing clamps.
All movements are effected by 3 motors drived by a control panel ;
Complete of n ° 3 pression bars and all accessories.
The TMTE “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimised and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the motor driven movements of all 4 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all four sides which are riding independently on roller bearings.
Frame contact with the mesh again is motor driven for easy handling.
CODE | NAME AND MODEL | MODEL | USEFUL SIZE CM. | OVERALL DIMENSION CM. |
AQSTMTE1330PM | MOTORIZED STRETCHING MACHINE |
TMTE 130X300 |
130X300 |
|
AQSTMTE1630PM |
MOTORIZED STRETCHING MACHINE |
TMTE 160X300 |
160X300 |
|
AQSTMTE1830PM |
MOTORIZED STRETCHING MACHINE |
TMTE 180X300 |
180X300 |
|
Dryer-Polymerizer Kiln to dry the screen after emulsion application or to polymerize the same after the application of hardeners.
RECOMMENDED PRODUCTS
Emulsions serie CERAGEL and hardener GELHARD HD
TECHNICAL CHARACTERISTICS
Painted steel structure
External walls completely insulated
Automatic opening and closing roller shutter made by insulated alluminum
Maximum operating temperature 100°C
Complete of internal rack with 10 shelves for positioning of any size of frames
Thermostat with digital display
Drying or polymerizing is made by hot air fans
Several models or sizes are available on demand
CODE |
NAME |
MODEL |
USEFUL SIZE OF SHELVES MM. |
OVERALL DIMENSIONS MM. |
AQSFOEP135100 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 1351 |
1350X1000 |
MM. 1730X1230X2100 H. |
AQSFOEP200120 |
ROLLER SHUTTER KILN 10 SHELVES |
RS 2012 |
2000X1200 |
MM. 2500X1430X2100 H. |
