MANUAL STRETCHING MACHINE TME

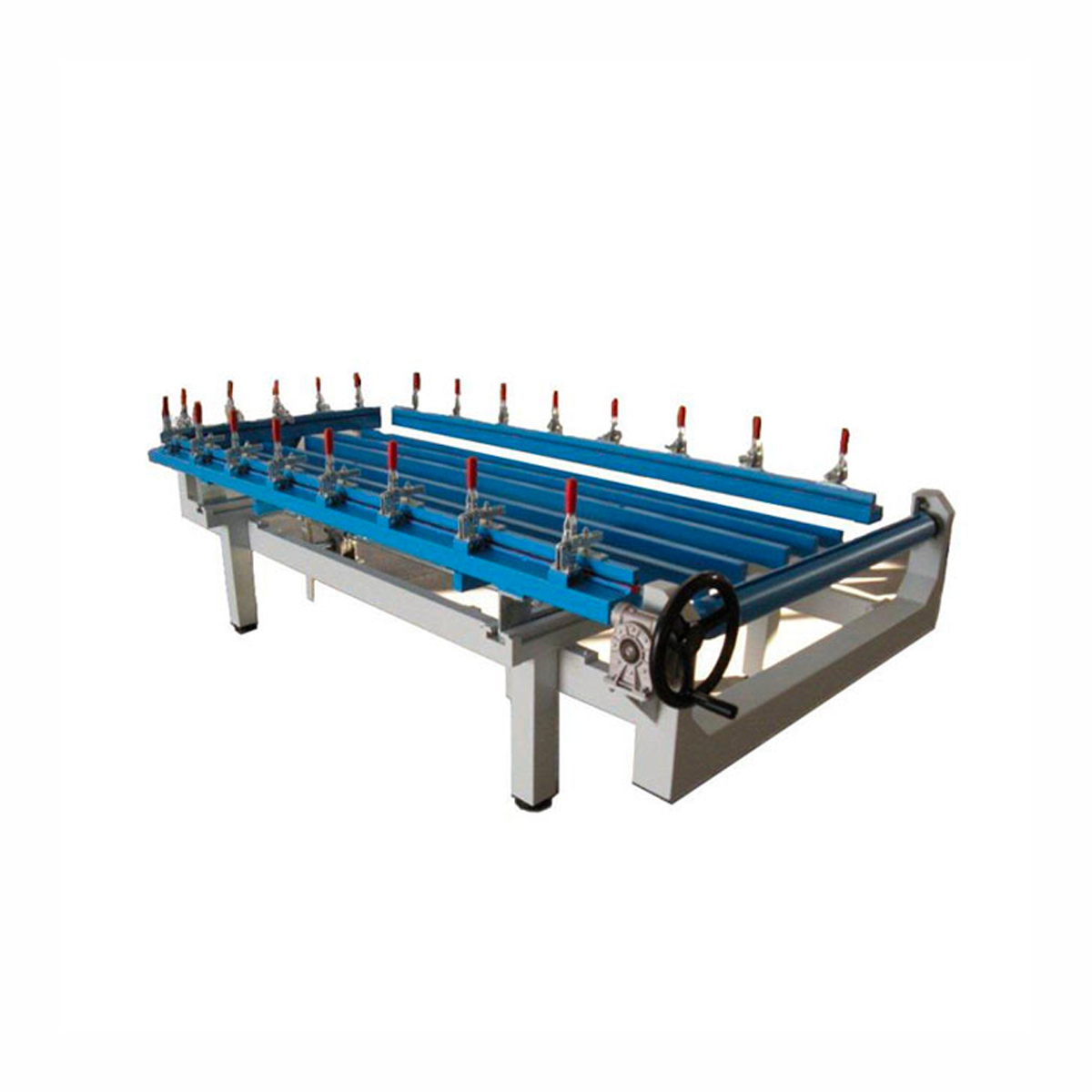

Made by painted stainless steel, with manual closing clamps. All movements are effected by 2 driving handwheels plus the beam’s one; Complete of n ° 3 pression bars and all accessories. The TME “multistretcher” is a mesh tensioning unit for the professionals. It allows stretching mesh on many frames of different formats and profiles at the same time. The waste of mesh is minimized and the most economical production is guaranteed. The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes. Due to the handwheels and beam movements of all 3 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all three sides which are riding independently on roller bearings. Frame contact with the mesh again is manually driven for easy handling.
CODE | NAME | MODEL | USEFUL FRAME SIZE CM. | OVERALL DIMENSION CM. |
AQSTME1330PM | MANUAL STRETCHING MACHINE | TME 130X300 |
130X300 |
390X186XH112 |
AQSTME1630PM |
MANUAL STRETCHING MACHINE |
TME 160X300 |
160X300 |
390X216XH112 |
AQSTME1830PM |
MANUAL STRETCHING MACHINE |
TME 180X300 |
180X300 |
390X236XH112 |
AQSTME2030PM |
MANUAL STRETCHING MACHINE |
TME 200X300 |
200X300 |
390X256XH112 |
Stretching table with pneumatic clamps, allows the stretching of fabrics on to the screen printing frames with the required degree of tension.
This equipment can be used to tension various types of fabric such as polyester, nylon and steel.
The special characteristic of this stretching table is that the pneumatic clamps are mobile and can be positioned as required in order to tension even just one frame for each tensioning operation.
This stretching table allows to the operator to use also the small rest of fabrics that otherwise could be not useable.
CODE | PNEUMATIC STRETCHER | TABLE SIZE CM. | PRODUCTION CAPACITY N° OF FRAMES OF EXTERNAL SIZE CM…. |
AQSTPP16 | MODEL TPP 16 | 185X185XH90 | 1-100X100, OR 2-100X50, OR 4-50X50 |
AQSTPP18 |
MODEL TPP 18 |
180X200XH90 |
1-130X105, OR 2-105X65, OR 4-50X50 |
AQSTPP20 |
MODEL TPP 20 |
200X200XH90 |
1-150X105, OR 2-105X75, OR 4-75X50 |
AQSTPP22 |
MODEL TPP 22 |
210X210XH90 |
1-150X130, OR 2-130X75, OR 4-75X75 |
AQSTPP24 |
MODEL TPP 24 |
210X230XH90 |
1-150X150, OR 2-150X75, OR 4-75X75 |
Complementary accessories.
Set for use during the preparation of flat and round screens
CODE |
DESCRIPTION AND USE |
AQSSEEDKIT | SEEDKIT – ACCESSORIES FOR SCREEN MAKING LABORATORY (COMPLETE SET OF THE BELOW ITEMS) |
ARCARG1010L05 | GRADUATED CARAF 10X10 L. 0.5 (TO DOSE LIQUID PRODUCTS) |
ARCCGB817ML100 | SHORT GRADUATED CYLINDER 817 – ML 100 (TO MEASURE CHEMICALS) |
ARCCGB820ML250 | SHORT GRADUATED CYLINDER 820 – ML 250 (TO MEASURE CHEMICALS) |
AGDCARTIGLIO | CLAW CUTTER (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
AGDCD400PCLR | CUTTER D400 P WITH SPARE BLADES (TO CUT FILMS, STRETCHED FRAMES, SCREENS, ETC.) |
AGDDISPNA3366 | ADHESIVE ROLL TAPE DISPENSER 33/66M (DISPENSER FOR ADHESIVE TAPE) |
ARCFLV3M | FLEXOMETER VOLA 3 METER LENGTH (FOR SEVERAL MEASUREMENTS) |
AGDFORLAB6P | 6 INCHES LASER SCISSOR (TO CUT FABRICS, FILMS, DESIGNS ON PAPER, ETC.). |
ARCGGAA | RUBBER ANTI-ACID GLOVES (TO WEAR WHEN USING CORROSIVE OR FLAMMABLE PRODUCTS) |
AGDKITLAMR9MM | KIT 10 SPARE BLADES 9 MM FOR CLAW CUTTER (SPARE BLADES FOR CUTTER) |
AQSLEN1010 | 10X10 MESH COUNTER (TO CONTROL DESIGNS, FILMS, FABRICS OR FINISHED SCREENS) |
AGDNASCRYCL1966 | ADHESIVE TAPE CRYSTAL CLEAR MM 19X66 MT |
AQSPELEXP | EXPOSURE CALCULATOR FILM (TO CONTROL ENGRAVING ANGLES) |
AGDPENSSFBLU | STABILO OH PEN SUPERFINE PERMANENT BLUE (TO WRITING ON FILMS) |
ARCPPACR | NYLON BRUSH 40 MM ( TO CLEAN OR DEGREASE THE FABRICS) |
ARCPSB30MM | BLOND BRISTLE BRUSH 30 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
ARCPSN50MM | BLACK BRISTLE BRUSH 50 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
ARCPSN60MM | BLACK BRISTLE BRUSH 60 MM (TO APPLY PRODUCTS OR TO MAKE FINISHING) |
ARCRIGTGRAD80 | T RULER PERSPEX NEUTRAL -MOVING HEAD- GRAD. CM. 80, (TO CONTROL ANGLES AND LINES) |
AQSSBAN111 | RETOUCHING SPATULA FINE ARTS NO. 111, (FOR FINISHING AND FILLER APPLICATION) |
ARCSPRZPL500CC | PLASTIC SPRAY BOTTLE 183 – 500 ML (FOR SEVERAL LIQUIDS) |
ARCSSG | GIANT SYNTHETIC SPONGE (FOR ACCESSORIES OR EQUIPMENT CLEANING) |
Metal halide lamp for the photoexposing of flat or round screens treated with UV sensitive photoemulsions
Recommended products: CERAGEL SCD, CERAGEL SK and FLASHGEL SHW
Seedex Dryer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C)
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 50°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions (other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power
RECOMMENDED OPTIONALS
Timer for automatic start and stop
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
