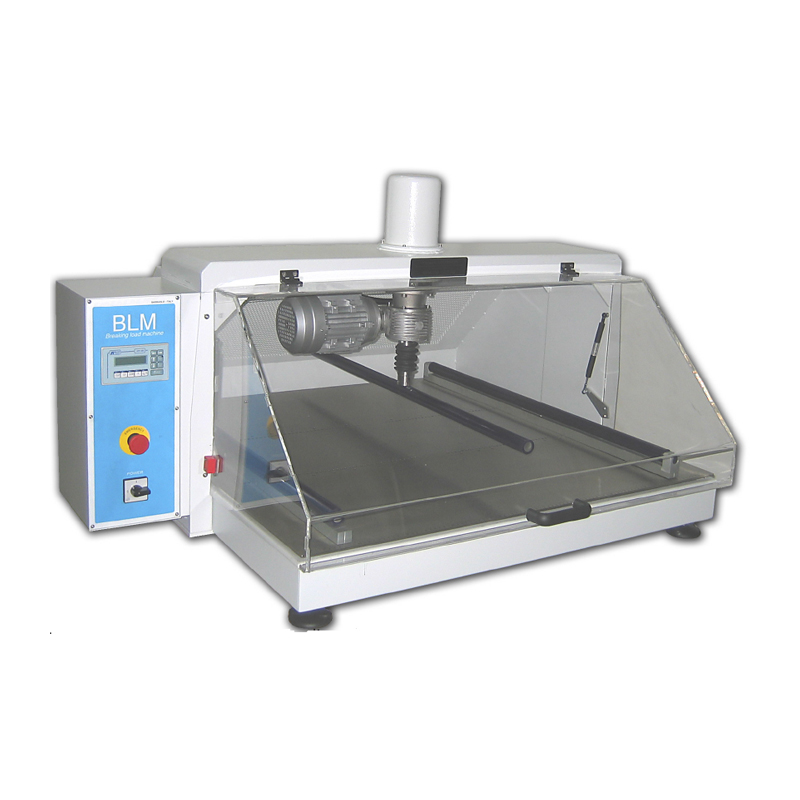

Can be used in companies producing ceramic tiles, sanitary ware, tableware and technical porcelain; in research laboratories, in the laboratories of Technical and University Institutes, and in all those cases in which it is necessary to determine the bending tensile strength of the most varied raw materials, reduced to shapes that can be positioned on the machines. Compliant with UNI EN ISO 10545-4. Minimum tile size cm. 10×10 General features:

  • Capacity: 0.5 + 800 kg
  • Reading: 0.01 kg (10 g) on the whole scale
  • Accuracy ± 0.005 kg on the reading.
Various models available.

Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
  • Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
  • Possibility to program the cooling (optional)
  • Management of the cooking cycle entrusted to a computer equipped with a touch screen
  • Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
  • Possibility of firing samples with a maximum size of 40 x 80 mm.



Various models with different accuracy and range.

Common features:

– Automatic tare over the entire range.

– Serial RS232 interface as standard.

– Filters for weighing in particular conditions and for dosing

– Selectable measurement units.

– LCD display with backlight.

– Operation with external power supply or internal rechargeable battery both supplied.



Power supply 230V 50/60 Hz

For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.



CALCIMETER PIZZARELLI MODEL

Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.

Total height 680 mm.

Net weight 0.7 kg



CALCIMETER DIETRICH- FRÜLING MODEL

Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.

Dimensions 400x220x1000 mm.

Net weight 12 kg
