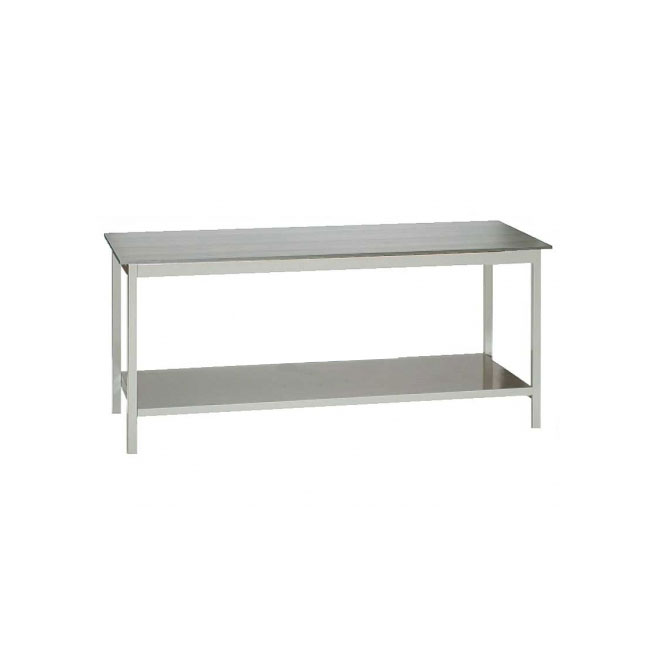

WORK TABLE
Laboratory work table, indispensable for the operator during the preparation of screen printing frames and cylinders, to place tools, product cans, frames, etc. on them. DESCRIPTION AND FEATURES: Sturdy painted steel structure. Upper and lower top in bilaminated wood. Dimensions 200x100x8 ARTICLE WITH CUSTOMER CUSTOMIZABLE FEATURES AND DIMENSIONS
It is used to remove excess water after the development of flat screens or for cleaning residue application of catalysts/hardeners or protective coatings in the process of finishing the screen itself.
TECHNICAL FEATURES
The suction pump is composed of three parts:
– Motor impeller channel to 150 cubic meters/hour;
– Central body with door opening that allows the extraction of container that collects the waste intake;
– A galvanized iron suction blade can be provided in two main sizes: 24 and 40 cm.
POWER SUPPLY
380 volt – 50 Hz
Made by painted stainless steel, is a motorized version model with manual closing clamps.
All movements are effected by 3 motors drived by a control panel ;
Complete of n ° 3 pression bars and all accessories.
The TMTE “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimised and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the motor driven movements of all 4 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all four sides which are riding independently on roller bearings.
Frame contact with the mesh again is motor driven for easy handling.
| CODE | NAME AND MODEL | MODEL | USEFUL SIZE CM. | OVERALL DIMENSION CM. |
| AQSTMTE1330PM | MOTORIZED STRETCHING MACHINE |
TMTE 130X300 |
130X300 |
|
| AQSTMTE1630PM |
MOTORIZED STRETCHING MACHINE |
TMTE 160X300 |
160X300 |
|
| AQSTMTE1830PM |
MOTORIZED STRETCHING MACHINE |
TMTE 180X300 |
180X300 |
|
Seedex Dryer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C)
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 50°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions (other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power
RECOMMENDED OPTIONALS
Timer for automatic start and stop
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
A solution developed for automatic processing and washing of all kinds of flat screens after the exposure step. It allows a perfect screen opening so it is possible to obtain very high constancy and quality of the finished frame.
TECHNICAL CHARACTERISTICS
Completely stainless steel made. Provided with recycling device with filters which cut down the water consumption and allow to reuse the recycled water for the development of the screens. An electric control panel is used to set all the programs for automatic development and washing cycles.
AVAILABLE MODELS
S-VA Standard Model
S-VAD Model with locking doors
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM. |
OVERALL DIMENSIONS CM. |
|
AQSSVA1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VA 1216 |
120X160 |
160X70X250 H. |
|
AQSVAD1216 |
AUTOMATIC DEVELOPING MACHINE |
S-VAD 1216 |
120X160 |
160X70X250 H. |
