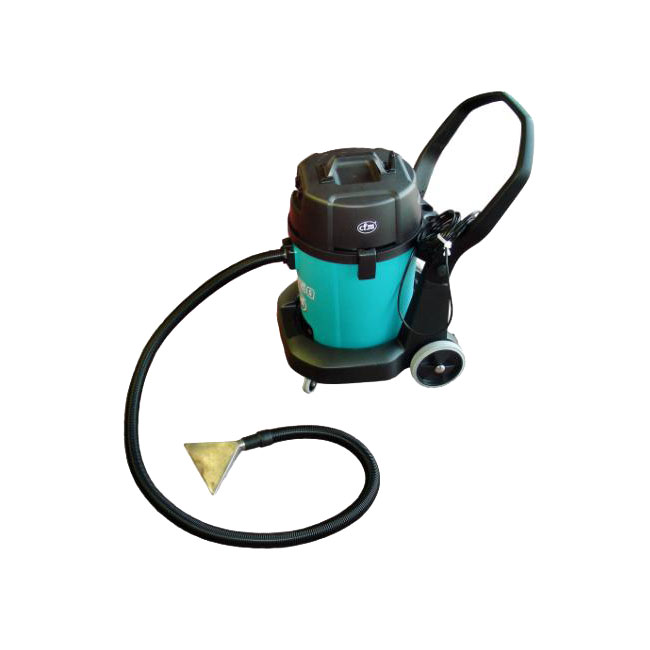

WET & DRY PROFESSIONAL VAC CFM 124/50
Wet & dry professional vac, 2.700 watt and 50 liters container. Designed for craftsman, where you need power and flexibility. The vacuum is equipped with a large number of accessories. Thanks to its built-in tilt mechanism emptying operations are made possible even when the container is full. In the back of the vacuum is present a liquid disposal device Depression: daPa 2.200 Airflow: l/min 3.600 Main filter area: cm² 2.260 Sound level: dB(A) 69 Dust bag/tank cap.: L 50 Weight: kG 21.5 Power supply: 220 V. 2,7 Kw Dimensions: HxWxL 87x60x64
|
CODE |
NAME |
MODEL |
|
AQSBA12450 |
WATER VACUUM EXTRACTOR |
CFM 124/50 |
It is used to remove excess water after the development of flat screens or for cleaning residue application of catalysts/hardeners or protective coatings in the process of finishing the screen itself.
TECHNICAL FEATURES
The suction pump is composed of three parts:
– Motor impeller channel to 150 cubic meters/hour;
– Central body with door opening that allows the extraction of container that collects the waste intake;
– A galvanized iron suction blade can be provided in two main sizes: 24 and 40 cm.
POWER SUPPLY
380 volt – 50 Hz
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C).
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 100°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions
(other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power 9 kW
RECOMMENDED SPARE PARTS
Timer for automatic start and stop
Heating elements
RECOMMENDED HARDENER
Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Made by painted stainless steel, is a motorized version model with manual closing clamps.
All movements are effected by 3 motors drived by a control panel ;
Complete of n ° 3 pression bars and all accessories.
The TMTE “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimised and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the motor driven movements of all 4 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all four sides which are riding independently on roller bearings.
Frame contact with the mesh again is motor driven for easy handling.
| CODE | NAME AND MODEL | MODEL | USEFUL SIZE CM. | OVERALL DIMENSION CM. |
| AQSTMTE1330PM | MOTORIZED STRETCHING MACHINE |
TMTE 130X300 |
130X300 |
|
| AQSTMTE1630PM |
MOTORIZED STRETCHING MACHINE |
TMTE 160X300 |
160X300 |
|
| AQSTMTE1830PM |
MOTORIZED STRETCHING MACHINE |
TMTE 180X300 |
180X300 |
|
The Seedex coating machine is cost efficient, ideal for smaller size frames for universal printing applications.
The infinitely adjustable speed, the extremely smooth movement of the coating carriage and the possibility of selecting the number of coating passes either side will result in depositing reproducible amounts of emulsion for perfect stencils. The Seedex coating machine grants a perfect reproducibility of the coating layer structure coating tolerance +/- 1 micron.
DESCRIPTION
Very user-friendly
Supplied with a full touch screen panel
Adjustable stepless speed
Coat build up from one or two sides
The CPU can store 50 different customized programs
The cross beam can be adapted simply to the required frame format
The machine is supplied installed and is supplied with a pair of coating troughs (length according to desire)
TECHNICAL DATA :
Electrical connection: 230 V – 50/60 hz (other voltage on request)
Pneumatic connection: 6 bar
Control: maintenance-free compact control (SPS) with touch screen panel language change-over by push a button
OPTIONS :
lower frameholder movable
double coating with one clamp per frame
double coating with two clamps per frame
|
CODE |
NAME |
MODEL |
USEFUL SIZE CM |
|
AQSPEM1515 |
AUTOMATIC COATING MACHINE |
SP-B 1515 |
150X150 |
|
AQSPEM1520 |
AUTOMATIC COATING MACHINE |
SP-B 1520 |
150X200 |
|
AQSPEM1525 |
AUTOMATIC COATING MACHINE |
SP-B 1525 |
150X250 |
