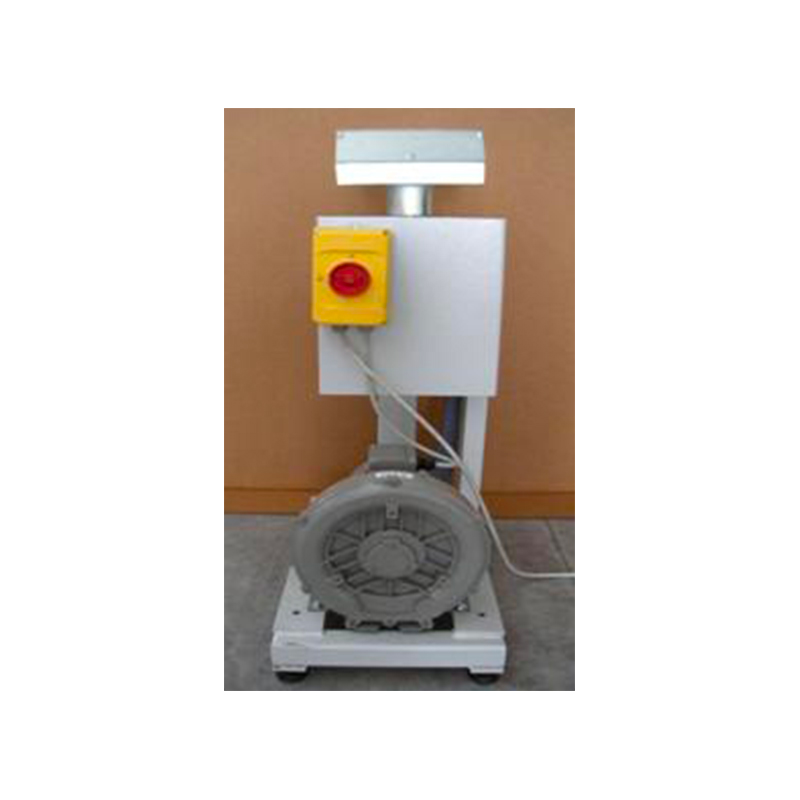

SUCTION PUMP PA150/25
It is used to remove excess water after the development of flat screens or for cleaning residue application of catalysts/hardeners or protective coatings in the process of finishing the screen itself.
TECHNICAL FEATURES
The suction pump is composed of three parts:
– Motor impeller channel to 150 cubic meters/hour;
– Central body with door opening that allows the extraction of container that collects the waste intake;
– A galvanized iron suction blade can be provided in two main sizes: 24 and 40 cm.
POWER SUPPLY
380 volt – 50 Hz
Seedex polymerizer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C) or for hardening or polymerizing ( after having applied a proper chemical hardener ) at a higher temperature (55 – 65°C).
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 100°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions
(other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power 9 kW
RECOMMENDED SPARE PARTS
Timer for automatic start and stop
Heating elements
RECOMMENDED HARDENER
Gelhard HD
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
Seedex photoexposer is a three-function machine for drying and exposing screen printing frames.
MACHINE’S DESCRIPTION AND CHARACTERISTICS:
Painted steel structure
The machine is equipped with a dryer with drawers located in the bottom part of the machine, with a pneumatic press in the central part, and a halogen lamp located in the upper part.
The Pneumatic press is available in 2 versions:
manual opening (model TC) and
automatic opening (model TC-A);
Dryer with 3 drawers sliding on bearings to dry photosensitive emulsion before exposure,
Completed with a UV ray protection system consisting of a rigid casing with a self-winding front curtain and sliding side panels for inspection.
The control panel consists of a 29 channel digital computer that can control and store exposure times, vacuum times, and the drying kiln temperature and display the number of hours the bulb has been operating in order to monitor its lifetime.
Exposure compensating light with photocell
A vacuum meter is installed on the control panel that allows the pressure control in the vacuum table
The cooling system include preventing overheating of electrical components
Metal-halogen lamp in 2 versions: 2000/5000 W or 3500/7000 W
POWER SUPPLY
400 V – 50 Hz (3 phases + earth) – 10000 W, with variations possible on request
RECOMMENDED SPARE PARTS
halogen bulb 5000 or 7000 W depending on the models
rubber mat with a sealed edge sized to the pneumatic press
|
CODE NUMBER |
PHOTOEXPOSER TC (MANUAL PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTC1 |
PHOTOEXPOSER TC 1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTC2 |
PHOTOEXPOSER TC 2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTC3 |
PHOTOEXPOSER TC 3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTC4 |
PHOTOEXPOSER TC 4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTC5 |
PHOTOEXPOSER TC 5 |
140X220 |
120X200 |
258X178X300 H |
|
CODE NUMBER |
PHOTOEXPOSER TC-A (AUTOMATIC PNEUMATIC PRESS OPENING) |
GLASS SIZE CM. |
USEFUL SIZE CM. |
OVERALL DIMENSION CM. |
| AQSFOTTCA1 |
PHOTOEXPOSER TC-A1 |
90X110 |
70X95 |
150X130X260 H |
| AQSFOTTCA2 |
PHOTOEXPOSER TC-A2 |
123X153 |
100X135 |
190X165X260 H |
| AQSFOTTCA3 |
PHOTOEXPOSER TC-A3 |
143X173 |
120X155 |
210X180X260 H |
| AQSFOTTCA4 |
PHOTOEXPOSER TC-A4 |
160X200 |
140X180 |
235X195X260 H |
| AQSFOTTCA5 |
PHOTOEXPOSER TC-A5 |
140X220 |
120X200 |
258X178X300 H |
Made by painted stainless steel, is a motorized version model with manual closing clamps.
All movements are effected by 3 motors drived by a control panel ;
Complete of n ° 3 pression bars and all accessories.
The TMTE “multistretcher” is a mesh tensioning unit for the professionals.
It allows stretching mesh on many frames of different formats and profiles at the same time.
The waste of mesh is minimised and the most economical production is guaranteed.
The frames can be stretched straight or at any angle with synthetic mesh, metallised polyester as well as stainless steel mesh to produce reproducible stencils for all printing purposes.
Due to the motor driven movements of all 4 sides, a parallel, even mesh tension of warp and weft is guaranteed; the uniform stretching over the entire area is maintained by the clamps on all four sides which are riding independently on roller bearings.
Frame contact with the mesh again is motor driven for easy handling.
| CODE | NAME AND MODEL | MODEL | USEFUL SIZE CM. | OVERALL DIMENSION CM. |
| AQSTMTE1330PM | MOTORIZED STRETCHING MACHINE |
TMTE 130X300 |
130X300 |
|
| AQSTMTE1630PM |
MOTORIZED STRETCHING MACHINE |
TMTE 160X300 |
160X300 |
|
| AQSTMTE1830PM |
MOTORIZED STRETCHING MACHINE |
TMTE 180X300 |
180X300 |
|
Seedex Dryer kiln with drawers is used for drying photosensitive emulsion at a low temperature (30-35°C)
TECHNICAL FEATURES
Strong varnished steel structure;
Operating with hot air fan-driven;
Maximum operating temperature 50°C;
Temperature control by a thermostat with digital display;
Sliding drawers on bearings;
4 or 6 drawers standard versions (other models or dimensions could be available on request)
Upper supporting surface in laminate wood;
Electric power supply: 380 V – 3 phases + earth -50 Hertz
Installed power
RECOMMENDED OPTIONALS
Timer for automatic start and stop
|
CODE |
NAME AND MODEL |
NUMBER OF DRAWERS |
USEFUL DRAWER SIZE CM. |
OVERALL DIMENSION CM. |
|
AQSFES4073110 |
DRYER KILN FE-4 |
4 |
73 X 110 |
120 X 085 X H115 |
|
AQSFES4093124 |
DRYER KILN FE-4 |
4 |
93 X 124 |
144 X 105 X H115 |
|
AQSFES4103140 |
DRYER KILN FE-4 |
4 |
103 X 140 |
160 X 115 X H115 |
|
AQSFES4123164 |
DRYER KILN FE-4 |
4 |
123 X 164 |
185 X 135 X H115 |
| AQSFES4140180 |
DRYER KILN FE-4 |
4 |
140 X 180 |
200 X 155 X H115 |
| AQSFES4150250 |
DRYER KILN FE-4 |
4 |
150 X 250 |
270 X 165 X H115 |
| AQSFES6073110 |
DRYER KILN FE-6 |
6 |
73 X 110 |
120 X 085 X H135 |
| AQSFES6093124 |
DRYER KILN FE-6 |
6 |
93 X 124 |
144 X 105 X H135 |
| AQSFES6103140 |
DRYER KILN FE-6 |
6 |
103 X 140 |
160 X 115 X H135 |
| AQSFES6123164 |
DRYER KILN FE-6 |
6 |
123 X 164 |
185 X 135 X H135 |
| AQSFES6140180 |
DRYER KILN FE-6 |
6 |
140 X 180 |
200 X 155 X H135 |
| AQSFES6150250 |
DRYER KILN FE-6 |
6 |
150 X 250 |
270 X 165 X H135 |
