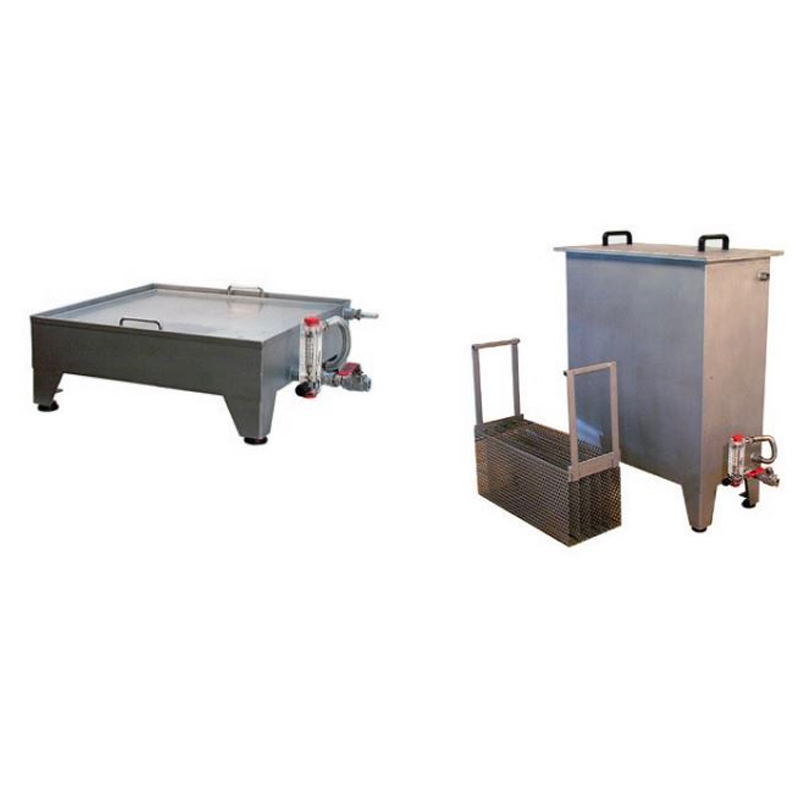

STANDARD REFRIGERANT TANKS VR / 60 / A AND VR / 60 / B MODELS

Suitable for determining the resistance to thermal shocks, in compliance with the UNI EN ISO 10545-9 standard. The standard provides for 10 cycles of heating and subsequent cooling of the test samples. Normalized tank model VR / 60 / A. Suitable for cooling ceramic tiles, with the method of immersion in water, up to the size of cm. 60×60. Normalized tank model VR / 60 / B. Suitable for indirect cooling of ceramic tiles, without immersion, up to the size of cm. 60×60. Tank structure in stainless steel.

Water veil cabin for the removal of sprayed glazes.

With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.

Useful working width: 74 × 55 cm depth.

Power supply 230V / 400V three-phase + N, 50 Hz.

Also available with useful working width 108×55



For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.



CALCIMETER PIZZARELLI MODEL

Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.

Total height 680 mm.

Net weight 0.7 kg



CALCIMETER DIETRICH- FRÜLING MODEL

Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.

Dimensions 400x220x1000 mm.

Net weight 12 kg

PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces

Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.

Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.

Electronics with inverter for precise regulation of the number of revolutions.

Model with 1 test group.

Model with 3 test groups.

For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.



Instrument for determining depth abrasion resistance of unglazed ceramic tiles. UNI EN ISO 10545-6 norm

For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
