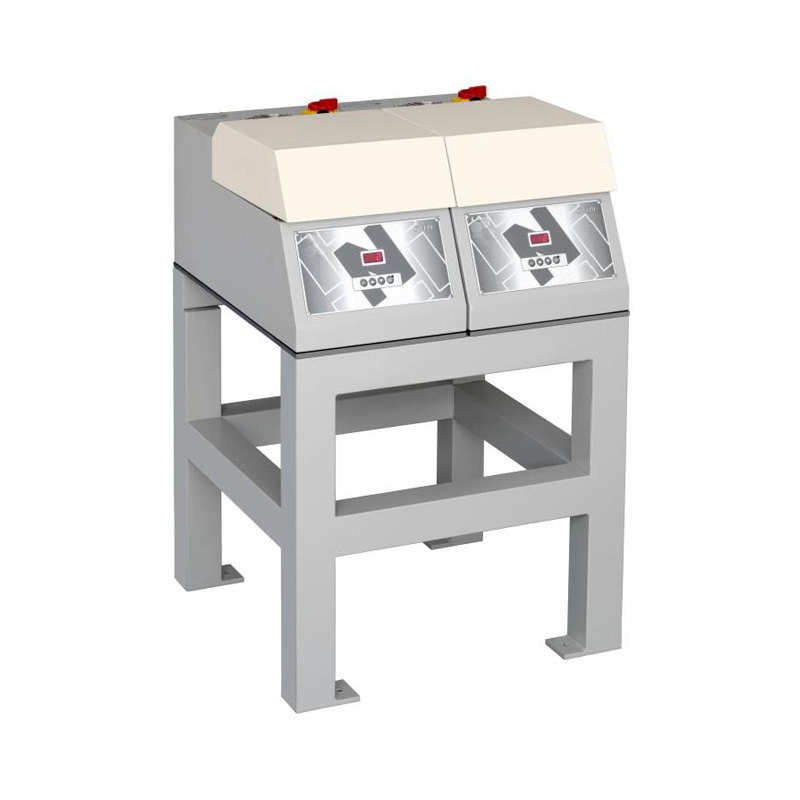

SPEEDY LABORATORY QUICK MILL

Laboratory machine suitable for rapid grinding of frits, glazes, dyes, etc. It is ideal for ceramic laboratories, color factories, cement factories, food industries, cosmetic and pharmaceutical industries, feed mills, research laboratories, etc. This machine is designed to grind with 1000cc jars and, with appropriate accessory (optional), with 300cc jars. It is built with modular modules equipped with a fire-painted soundproofing case and electronic control of the cycle

Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.

Thermal insulation is provided in ceramic fiber and low-density refractory bricks.

For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.

For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.

With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.

Oven equipped with an easily settable control panel.

Various models available (firing volume and maximum temperature).



Water veil cabin for the removal of sprayed glazes.

With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.

Useful working width: 74 × 55 cm depth.

Power supply 230V / 400V three-phase + N, 50 Hz.

Also available with useful working width 108×55



The RM200QC Imaging Spectro Colorimeter is designed to ensure stable comparison of colors on materials and products, whenever color control is important.

Practical and pocket-sized tool is perfect for laboratory or in-line color checking.

System with 45 ° / 0 geometry and LED light source, with reading spot of 4 and 8 mm.

With USB interface that allows the instrument to be recharged and the measurements to be downloaded to the computer.



Uses:

– verification of color stability throughout the entire production process.

– immediate quality control with Pass / Fail procedure.





Water veil cabin in stainless steel with water recirculation dust suppression system.

Useful working width: 97 × 70 cm in depth.

0.5 Hp water recirculation pump.

Complete with settling tank for recirculation and waste water disposal.



Power supply 400 V three-phase, 50 Hz.
