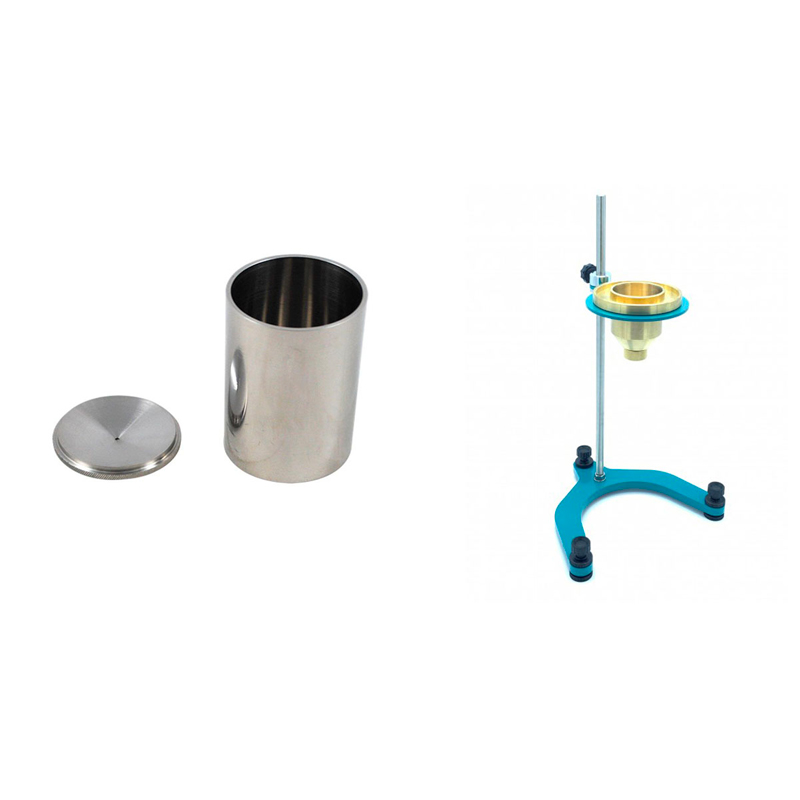

PYCNOMETER
Instrument suitable for the rapid determination of the specific weight of liquids or solutions in general. In stainless steel, with double calibration: capacity 100 cc, total weight calibrated at 200 g. GRAVITY VISCOSIMETERS – FORD CUP Can be used in various industrial sectors and in research and control laboratories. Ideal in the ceramic industry, for detecting the viscosity of glazes and slips. Also available single cups and nozzles.
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Equipped with 6 independent heating cells;
- Possibility of setting and managing gradients of up to 15 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
- Possibility to manage the oven even from a distance.
- Firing area size 150x600x110 mm
For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.
CALCIMETER PIZZARELLI MODEL
Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.
Total height 680 mm.
Net weight 0.7 kg
CALCIMETER DIETRICH- FRÜLING MODEL
Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.
Dimensions 400x220x1000 mm.
Net weight 12 kg
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
The PEIBOX/B is the perfect booth to view the specimens abraded according to the PEI method, compliant with the ASTM C1027-99 and UNI EN ISO 10545-7 standards.
The instrument is supplied with the intensity of regulation adjusted in accordance with the standard.
Perfect complement to our AP-18, PEI100-300 and PEI3 abrasive meters.
