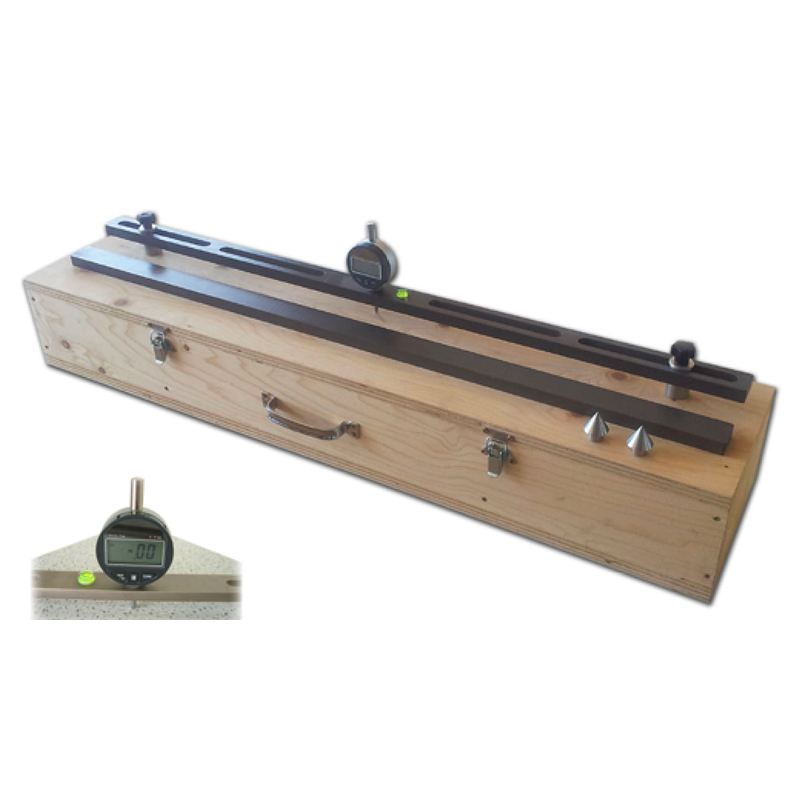

MPP PORTABLE FLAT METERS
Instruments suitable for the rapid determination of the flatness of ceramic tiles, measured on the diagonal. Composed of a hard anodized aluminum alloy bar, with 2 calibrated spiked feet at adjustable distance, 2 cylindrical calibrated feet, spherical bubble and centesimal precision digital comparator ±0.015 mm. Supplied complete with adjusted zero acquisition rod. Various sizes available, up to 1600mm Also available in the brick version
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
Gauges suitable for measuring the diameter of nozzles for burners, atomizers, etc.
Various sizes available.
Water veil cabin in stainless steel with water recirculation dust suppression system.
Useful working width: 97 × 70 cm in depth.
0.5 Hp water recirculation pump.
Complete with settling tank for recirculation and waste water disposal.
Power supply 400 V three-phase, 50 Hz.
BULLERS RINGS
Bullers pyrometric rings.
They are the best temperature / time measurement system in all firing processes of ceramic products.
PTCR RINGS
The PTCR pyrometric rings have approximately the same characteristics and the same use as the rings
Bullers. They are smaller in size, and their measurement is performed with a digital millesimal micrometer.
