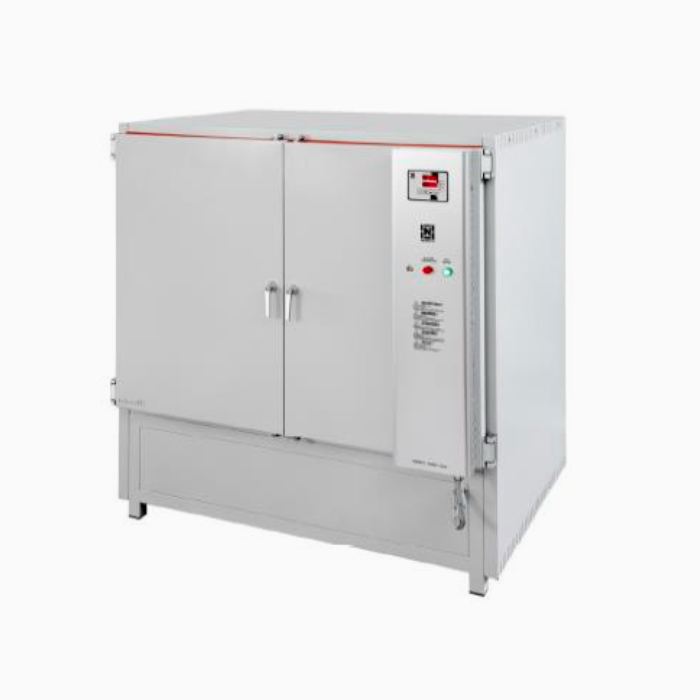

FLOOR THERMOSTATIC STOVES VF SERIES

Floor standing, large capacity, with forced circulation and two doors. Maximum temperature 220 ° C Various versions available (different for internal dimensions and capacities)

Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.

The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.

Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.

Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.

LKN77 and LKN87 models equipped with “silicon carbide” elements.

Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”

Various models available (firing area dimensions and maximum temperature).



Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

KILN DRYER FOR

CERAMIC LABORATORY

Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)

Instruments for measuring the conductivity of liquids.

Various models available.

For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.



CALCIMETER PIZZARELLI MODEL

Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.

Total height 680 mm.

Net weight 0.7 kg



CALCIMETER DIETRICH- FRÜLING MODEL

Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.

Dimensions 400x220x1000 mm.

Net weight 12 kg
