FCN MELTING FURNACES

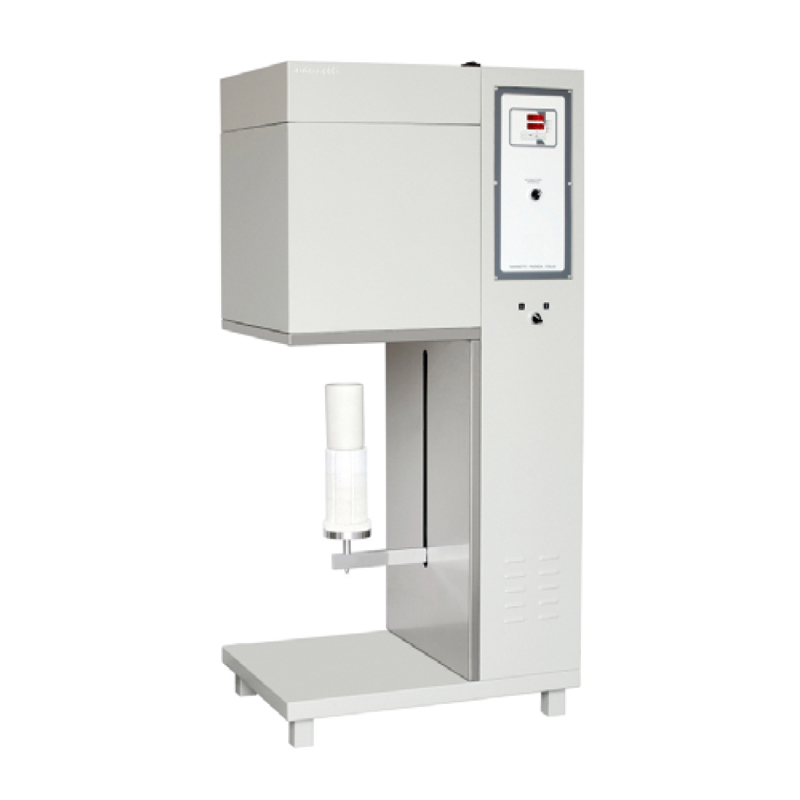

Melting furnace of the movable hearth type, as by means of a suitable mechanism, the hearth of the furnace on which the crucible rests can rise and fall. This allows the crucible to be easily removed, with suitable pliers, when it has been ascertained that the mixture under test is melted. -Quantity of mixture to be melted / about 600/1000 g -Maximum temperature +1600 ° C.   Also available in version with maximum temperature + 1700 ° C.

Equipment used for sharpening screen printing squeegees used both on manual printing bases and on semi-automatic printing bases.

Solid steel structure, with manual movement sharpening wheel

Power supply: 400V 50 / 60Hz

Electric furnaces used in the thermal processes of the metallurgical, chemical, dental and ceramic laboratory.

The combination of lightened plates, resistances mounted on glow plugs and the use of preformed ceramic fibers, allow these ovens to rise in temperature quickly and cool down just as quickly, so as to offer the greatest advantages in intermittent work.

Equipped with a K1P programmer with which it is possible to set 4 cooking cycles each consisting of 8 steps.

Models LKN74, LKN75, LKN76, LKN84, LKN85 and LKN86 equipped with wire resistors.

LKN77 and LKN87 models equipped with “silicon carbide” elements.

Models LKN78, LKN79, LKN80, LKN88, LKN89 and LKN90 with resistors consisting of elements in “silicide molybdenum”

Various models available (firing area dimensions and maximum temperature).



Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Equipped with 6 independent heating cells;
  • Possibility of setting and managing gradients of up to 15 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature from a minimum of 60 minutes to a maximum of 180 minutes.
  • Possibility to manage the oven even from a distance.
  • Firing area size 150x600x110 mm



PEI abrasion meter, for determining the abrasion resistance of ceramic glazed surfaces

Suitable for carrying out tests according to the P.E.I. (wet). UNI EN ISO 10545-7 standard.

Rotating units with digital electronic pre-selection pulse counter adjustment, with LED display.

Electronics with inverter for precise regulation of the number of revolutions.

Model with 1 test group.

Model with 3 test groups.

For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
