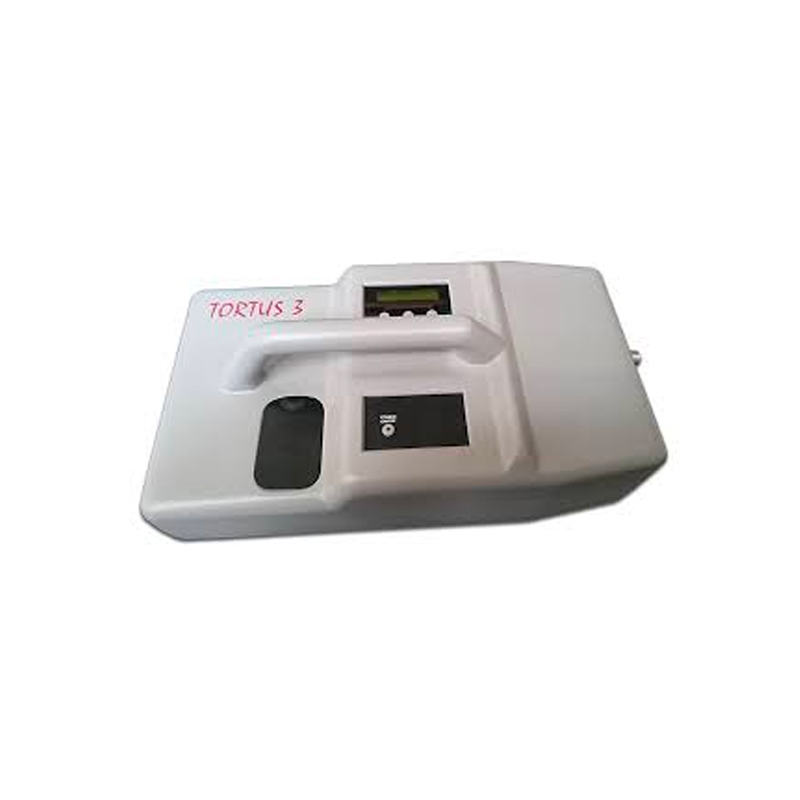

DYNAMIC SLIDE GAUGE MOD. TORTUS 3
The new Tortus 3 coefficient of friction meter is the latest version of the original BCRA instrument. Tortus 3 is a microprocessor-controlled, self-propelled precision instrument that directly measures the coefficient of dynamic friction, sliding on surfaces or floors used by pedestrians. Provides an instantaneous reading of the coefficient of friction on a digital display as you move across the surface and displays the mean μ value at the end of the test.
Equipment used for sharpening screen printing squeegees used both on manual printing bases and on semi-automatic printing bases.
Solid steel structure, with manual movement sharpening wheel
Power supply: 400V 50 / 60Hz
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Mechanical shaft stirrer with LED display.
Maximum stirring rate of 20 Litres.
Agitation rate adjustable from 50 to 2,200 rpm with a power of 50W.
Overheating motor overload indicator light.
Upper passage hole for stirring rods.
Supplied complete with steel spindle and relative key.
Degree of protection IP 42. 220V power supply.
Instrument for determining depth abrasion resistance of unglazed ceramic tiles. UNI EN ISO 10545-6 norm
For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
