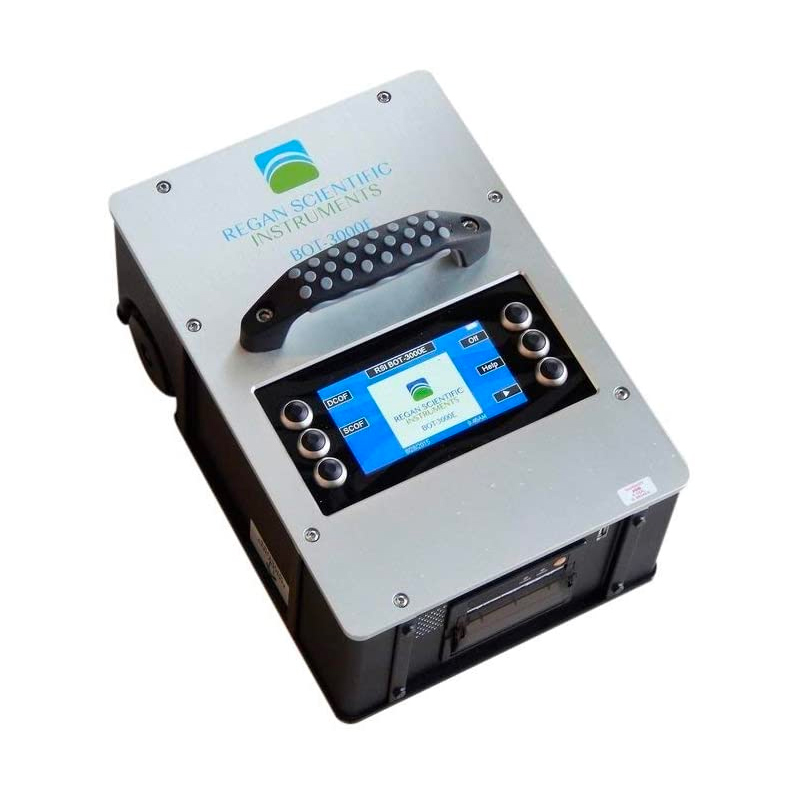

DYNAMIC SLIDE GAUGE MOD. BOT3000E

The BOT-3000E is the third generation of the world’s most advanced portable tribometer. The unit can accurately measure the coefficient of static friction (SCOF) and dynamic friction (DCOF) wet or dry. Complies with the most advanced European and American regulations.

Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.

Thermal insulation is provided in ceramic fiber and low-density refractory bricks.

For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.

For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.

With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.

Oven equipped with an easily settable control panel.

Various models available (firing volume and maximum temperature).



Laboratory drawer kiln for drying tiles, raw materials, glazes and colors.



DESCRIPTION AND TECHNICAL FEATURES
– Painted steel structure
– Equipped with 5 or 7 drawers with stainless steel interior
– Useful inside of drawers : cm. 85×140 (also available in version with useful drawers cm. 70×75)
– Maximum temperature of use : 120°C
– Thermoregulator with digital display
– Models with 5 or 6 drawers , equipped with normal feet or movable wheels

Code

KILN DRYER FOR

CERAMIC LABORATORY

Number of drawers

and useful inside cm.

External dimensions cm.

ARCDRYCER7

DRYCER 7

7 (85×140)

162x100xH120

ARCDRYCER7CR

DRYCER 7-W

7 (85×140)

162x100xH120

ARCDRYCER5

DRYCER 5

5 (85×140)

162x100xH120

ARCDRYCER5CR

DRYCER 5-W

5 (85×140)

162x100xH120

(5-W and 7-W models are equipped with wheels)

For the percentage determination of calcium carbonate in clays used in the ceramic and brick industry, and in other products such as limestone, marl, earth in general, sands, etc.



CALCIMETER PIZZARELLI MODEL

Consisting of base, graduated volume tank (0/100 cc), breather, and upper reagent tank, 5 cc sample holder test tube.

Total height 680 mm.

Net weight 0.7 kg



CALCIMETER DIETRICH- FRÜLING MODEL

Consisting of a base with metal rods, sample bottle, reagent holder tube, graduated glass beaker for cooling water, cooling coil, graduated volume tank (0/200 cc) and leveling tank or vent water collection.

Dimensions 400x220x1000 mm.

Net weight 12 kg

Instrument for determining depth abrasion resistance of unglazed ceramic tiles. UNI EN ISO 10545-6 norm

For a professional view of the test result, we recommend the combination with the PEIBOX/B cabin.
