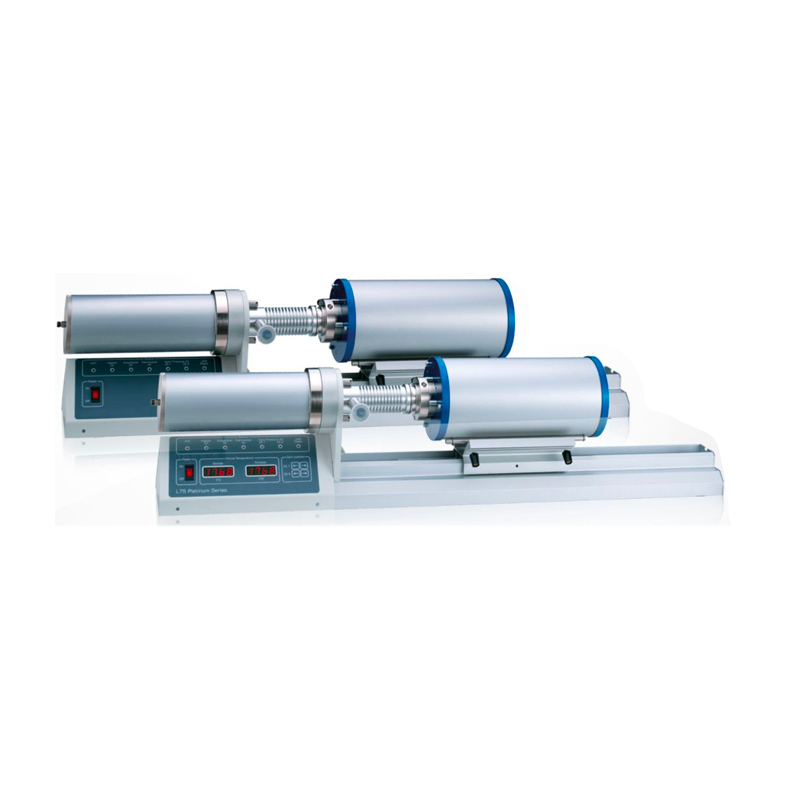

DILATOMETERS
Instruments for the precise measurement of expansion and shrinkage of ceramic materials. Our dilatometers combine ease of use, high adaptability to different fields of application and exceptional performance in a single instrument. The optimized measurement system design with an inductive transducer compensates for temperature fluctuations and produces highly reliable data. No cooler is required. Our dilatometers comply with practically all national and international standards (such as DIN 51045 or JIS R 2007). Features: – Horizontal design with a combustion chamber that is easy to access and use. – Large compartment in the tubular support sample for easy positioning of samples. – Thermocouple positioned close to the sample for reproducible temperature measurement. Various models available (from 1000 ° C to 1600 ° C).
Vernier calipers with micrometric screw for precise measurements. Made of hardened stainless steel.
Vernier 1/50.
Various sizes available.
Electronic centesimal vernier calipers, for precise digital measurements. Made of hardened stainless steel, they have a screen with LCD display.
Equipped with zero button, measurement unit conversion button (mm / inch) and on / off button.
Various sizes available.
Water veil cabin for the removal of sprayed glazes.
With HP 0.75 centrifugal electric fan, rear panel for sliding water film and water film system also placed under the piece support grid with water collection hopper equipped with discharge pipe.
Useful working width: 74 × 55 cm depth.
Power supply 230V / 400V three-phase + N, 50 Hz.
Also available with useful working width 108×55
Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.
Features:
- Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
- Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
- Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
- Possibility to program the cooling (optional)
- Management of the cooking cycle entrusted to a computer equipped with a touch screen
- Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
- Possibility of firing samples with a maximum size of 40 x 80 mm.
The PEIBOX/B is the perfect booth to view the specimens abraded according to the PEI method, compliant with the ASTM C1027-99 and UNI EN ISO 10545-7 standards.
The instrument is supplied with the intensity of regulation adjusted in accordance with the standard.
Perfect complement to our AP-18, PEI100-300 and PEI3 abrasive meters.
