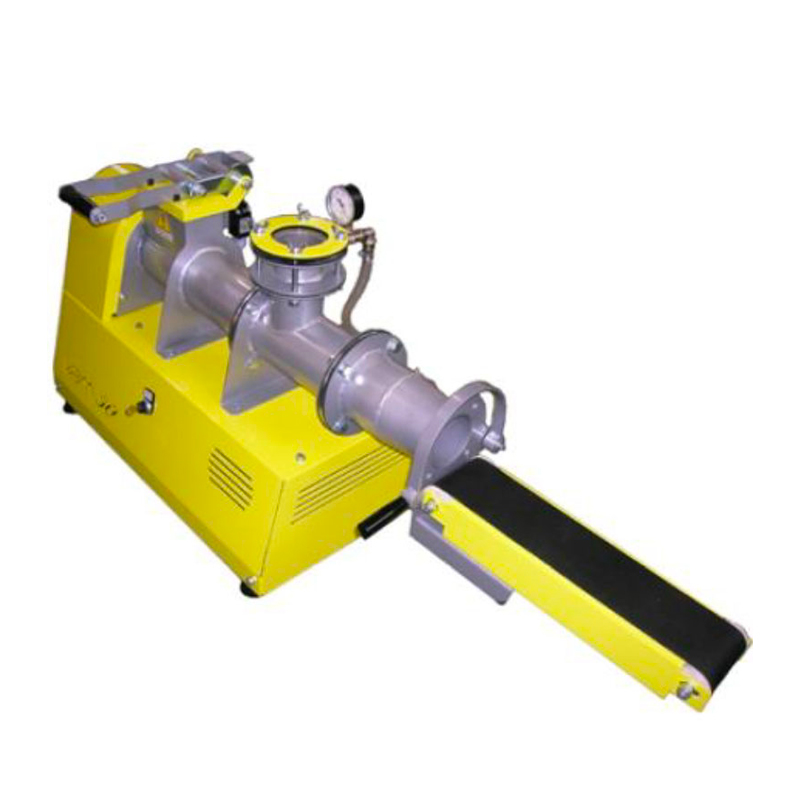

CLAY MIXER WITH DEGASSING UNIT VPM/90

Suitable to mix, homogenize and degas ceramic bodies at plastic state. The machine needs to be fed with material properly treated at plastic state. Using a proper orifice (optional) it is possible to obtain a 60x12mm profile. Equipment: – Manual wiry cutter – Sliding and exit seam supporting runner with out of gear belt – Wrench tools set

Vernier calipers with micrometric screw for precise measurements. Made of hardened stainless steel.

Vernier 1/50.

Various sizes available.

Electronic centesimal vernier calipers, for precise digital measurements. Made of hardened stainless steel, they have a screen with LCD display.

Equipped with zero button, measurement unit conversion button (mm / inch) and on / off button.

Various sizes available.

Laboratory oven built with a steel structure painted in fire at 180 ° C with paints scratch-resistant epoxy.

Thermal insulation is provided in ceramic fiber and low-density refractory bricks.

For the CVK-N and CVK-N / S models, the heating parts are composed of Kanthal-type spiral-wound electric resistors.

For the CVK-N / SCS model the heating parts are composed of silicon carbide electric resistors.

With this oven, it is possible to simulate the entire cooking curve of a continuous industrial oven.

Oven equipped with an easily settable control panel.

Various models available (firing volume and maximum temperature).



Oven equipped with different firing zones with different temperatures (thermal gradient), which follow the same firing cycle.

Features:

  • Temperature uniformity within each of the 6 cells of approximately +/- 2 / 2.5 ° C;
  • Possibility of setting and managing minimum gradients of 10 ° C and maximum of 60 ° C between cell and cell
  • Possibility of carrying out rapid cycles with times of reaching the maximum temperature of +/- 20 minutes and a maximum of 5 hours.
  • Possibility to program the cooling (optional)
  • Management of the cooking cycle entrusted to a computer equipped with a touch screen
  • Possibility of filing the results obtained in the various cells during the thermal cycles; test date and material tested
  • Possibility of firing samples with a maximum size of 40 x 80 mm.



BULLERS RINGS

Bullers pyrometric rings.

They are the best temperature / time measurement system in all firing processes of ceramic products.



PTCR RINGS

The PTCR pyrometric rings have approximately the same characteristics and the same use as the rings

Bullers. They are smaller in size, and their measurement is performed with a digital millesimal micrometer.
